Work with obsSpace

JEDI or GSI generates observation space diagnostic files, which contains original observation information, hofx (H(x), i.e. model counter-parts at the observataion locations), OMB (observation minus background), OMA as well as other information.

This notebook covers how to deal with JEDI diganostic files (which are also called output ioda files). We call them jdiag files.

import packages and define variables

%%time

# autoload external python modules if they changed
%load_ext autoreload
%autoreload 2

import os, sys
pyDAmonitor_ROOT=os.getenv("pyDAmonitor_ROOT")
if pyDAmonitor_ROOT is None:
    print("!!! pyDAmonitor_ROOT is NOT set. Run `source ush/load_pyDAmonitor.sh`")
else:
    print(f"pyDAmonitor_ROOT={pyDAmonitor_ROOT}\n")
sys.path.insert(0, pyDAmonitor_ROOT)

# import modules
import warnings
import math
import numpy as np
import uxarray as ux
import xarray as xr
import pandas as pd
import seaborn as sns  # seaborn handles NaN values automatically
import matplotlib.pyplot as plt
from netCDF4 import Dataset
from DAmonitor.base import query_dataset, query_data, query_obj, to_dataframe, aircraft_reject_list_to_df

#jdiag_file=f"{pyDAmonitor_ROOT}/data/ioda/ioda_aircar.2024050600.nc"
jdiag_file=f"{pyDAmonitor_ROOT}/data/mpasjedi/jdiag_aircar_t133.nc"

pyDAmonitor_ROOT=/home/Guoqing.Ge/pyDAmonitor

CPU times: user 3.27 s, sys: 1.05 s, total: 4.32 s
Wall time: 5.01 s

Use the obsSpace class to read jdiag files

from DAmonitor.obs import obsSpace, fit_rate

# create a t133 object using the obsSpace class
t133=obsSpace(jdiag_file)

# check the t133 object
query_obj(t133)

['bt',
 'ds',
 'filepath',
 'groups',
 'locations',
 'metadata',
 'nlocs',
 'q',
 't',
 'u',
 'v']

np.set_printoptions(threshold=np.inf)  # print out all array values
# print(t133.t.aircraftFlightNumber)
# print(t133.t.stationIdentification)
print(t133.t.stationIdentification[10])
print(t133.t.aircraftFlightNumber[10])
#
np.set_printoptions(threshold=500) # don't print out all array values
print(t133.t.ObsValue)

KKJ1Z4BA
R33RPDYQ
[218.15 223.15 250.45 ... 224.15 222.15 224.15]

# query data
query_data(t133.q)  # since the t133 object does not contain q observations, so it will display meta information

stationIdentification, aircraftFlightPhase, timeOffset, prepbufrDataLvlCat, longitude, stationElevation, latitude, prepbufrReportType, pressure, dateTime, height, dumpReportType, aircraftFlightNumber, ObsError, ObsType, ObsValue, QualityMarker, Location

# query data
query_data(t133.t)

EffectiveError0, EffectiveError1, EffectiveError2, EffectiveQC0, EffectiveQC1, EffectiveQC2, stationIdentification, aircraftFlightPhase, timeOffset, prepbufrDataLvlCat, longitude, stationElevation, latitude, prepbufrReportType, pressure, dateTime, height, dumpReportType, aircraftFlightNumber, ObsBias0, ObsBias1, ObsBias2, ObsError, ObsType, ObsValue, QualityMarker, TempObsErrorData, hofx0, hofx1, hofx2, innov1, oman, ombg, Location

The above output shows that we reorganize the data structure based on the observation variable, i.e. t, q, uv, bt
We can access values easily using popular Python class strucutre, i.e. t133.t, t133.t.ObsValue, etc

Convert to Pandas DataFrame

Converting jdiag data into Pandas DataFrame brings up lots of benefits and we can use utilize lots of mature DataFrames capabilities.
We can see this from the following cell.

pd.set_option('display.max_columns', None)  # show all dataframe columns
df = to_dataframe(t133.t)
df[df["QualityMarker"]>=12]  # filter the data frame
#df

	EffectiveError0	EffectiveError1	EffectiveError2	EffectiveQC0	EffectiveQC1	EffectiveQC2	stationIdentification	aircraftFlightPhase	timeOffset	prepbufrDataLvlCat	longitude	stationElevation	latitude	prepbufrReportType	pressure	dateTime	height	dumpReportType	aircraftFlightNumber	ObsBias0	ObsBias1	ObsBias2	ObsError	ObsType	ObsValue	QualityMarker	TempObsErrorData	hofx0	hofx1	hofx2	innov1	oman	ombg	Location

Read the aircraft reject list from “current_bad_aircraft.txt”

filepath=f"{pyDAmonitor_ROOT}/data/current_bad_aircraft.txt"
dflist = aircraft_reject_list_to_df(filepath)
dflist

	tailID	flagT	flagW	flagR	FSL	MDCRS	N	bs_T	std_T	bs_S	std_S	bs_D	std_D	bs_W	std_W	bs_RH	std_RH	fail_reason
0	00000320	T	W	-	26490	--------	470	11.3	2.8	0.8	2.7	-8	11	1.9	4.0	0.0	0.0	Unknown(bias_Tstd_Tbias_DIR)
1	00000400	T	W	R	0	--------	0	0.0	0.0	0.0	0.0	0	0	0.0	0.0	0.0	0.0	UND_Piper(resrch_T_W_R)
2	00000450	T	W	R	9086	--------	0	0.0	0.0	0.0	0.0	0	0	0.0	0.0	0.0	0.0	UND_Piper(resrch_T_W_Rresrch_T_W_R)
3	00000451	T	W	R	9148	--------	0	0.0	0.0	0.0	0.0	0	0	0.0	0.0	0.0	0.0	King_Air(resrch_T_W_RU_Wyo_T_W_R)
4	00000499	T	W	R	0	--------	0	0.0	0.0	0.0	0.0	0	0	0.0	0.0	0.0	0.0	Unknown(TAM_FS_T_W_R)
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
278	N988DL	-	W	-	250	C5M13RZA	0	0.0	0.0	0.0	0.0	0	0	0.0	0.0	0.0	0.0	MD88(md88_W)
279	N989DL	-	W	-	251	ENXL3TBA	0	0.0	0.0	0.0	0.0	0	0	0.0	0.0	0.0	0.0	MD88(md88_W)
280	N990AK	T	-	-	31354	VM3LX3RA	924	-0.4	15.6	0.3	2.1	-1	7	1.6	3.0	0.0	0.0	Unknown(std_T)
281	OE-LPL	-	W	-	32404	UAV15PJA	310	0.9	0.9	1.1	2.2	18	63	18.1	21.8	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
282	OE-LPM	-	W	-	32579	BGWUR1ZA	269	0.2	1.0	1.0	2.3	11	65	17.5	21.0	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)

283 rows × 18 columns

check if any tailID is in the jdiag stationIdentification field

# all 283 tailIDs are NOT found in jdiag `stationIdentification` fields
mask = dflist["tailID"].isin(df["stationIdentification"])
print(len(dflist[mask]))

0

# this confirms all 283 rows are NOT found in jdiag `stationIdentification` fields
mask = ~dflist["tailID"].isin(df["stationIdentification"])
dflist[mask]

	tailID	flagT	flagW	flagR	FSL	MDCRS	N	bs_T	std_T	bs_S	std_S	bs_D	std_D	bs_W	std_W	bs_RH	std_RH	fail_reason
0	00000320	T	W	-	26490	--------	470	11.3	2.8	0.8	2.7	-8	11	1.9	4.0	0.0	0.0	Unknown(bias_Tstd_Tbias_DIR)
1	00000400	T	W	R	0	--------	0	0.0	0.0	0.0	0.0	0	0	0.0	0.0	0.0	0.0	UND_Piper(resrch_T_W_R)
2	00000450	T	W	R	9086	--------	0	0.0	0.0	0.0	0.0	0	0	0.0	0.0	0.0	0.0	UND_Piper(resrch_T_W_Rresrch_T_W_R)
3	00000451	T	W	R	9148	--------	0	0.0	0.0	0.0	0.0	0	0	0.0	0.0	0.0	0.0	King_Air(resrch_T_W_RU_Wyo_T_W_R)
4	00000499	T	W	R	0	--------	0	0.0	0.0	0.0	0.0	0	0	0.0	0.0	0.0	0.0	Unknown(TAM_FS_T_W_R)
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
278	N988DL	-	W	-	250	C5M13RZA	0	0.0	0.0	0.0	0.0	0	0	0.0	0.0	0.0	0.0	MD88(md88_W)
279	N989DL	-	W	-	251	ENXL3TBA	0	0.0	0.0	0.0	0.0	0	0	0.0	0.0	0.0	0.0	MD88(md88_W)
280	N990AK	T	-	-	31354	VM3LX3RA	924	-0.4	15.6	0.3	2.1	-1	7	1.6	3.0	0.0	0.0	Unknown(std_T)
281	OE-LPL	-	W	-	32404	UAV15PJA	310	0.9	0.9	1.1	2.2	18	63	18.1	21.8	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
282	OE-LPM	-	W	-	32579	BGWUR1ZA	269	0.2	1.0	1.0	2.3	11	65	17.5	21.0	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)

283 rows × 18 columns

check if any MDCRS is in the jdiag stationIdentification fields

mask = dflist["MDCRS"].isin(df["stationIdentification"])
print(len(dflist[mask]))
dflist[mask]

53

	tailID	flagT	flagW	flagR	FSL	MDCRS	N	bs_T	std_T	bs_S	std_S	bs_D	std_D	bs_W	std_W	bs_RH	std_RH	fail_reason
28	N12005	-	W	-	23986	X0ZRVXRA	410	0.3	0.9	0.7	2.5	19	61	20.6	24.2	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
29	N12006	-	W	-	24180	GN0RPDJA	334	0.9	0.9	0.5	2.3	8	37	13.2	14.6	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
31	N12012	-	W	-	26076	LO5SVXJA	401	0.8	1.0	0.6	2.2	6	59	19.5	22.4	0.0	0.0	Unknown(std_DIRstd_Wrms_W)
34	N12116	T	-	-	5159	SSQRPMJA	482	2.8	1.2	0.9	3.6	-1	8	2.0	4.9	0.0	0.0	Unknown(bias_T)
37	N14011	-	W	-	25904	5YSSATRA	554	0.6	0.9	0.5	2.3	4	57	15.8	18.4	0.0	0.0	Unknown(std_DIRstd_Wrms_W)
38	N14016	-	W	-	29764	JS5BPMRA	390	0.8	1.0	0.3	2.5	9	55	15.1	17.6	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
43	N17002	-	W	-	23457	WSRSVRZA	280	0.5	1.2	0.4	2.2	0	51	13.5	15.6	0.0	0.0	Unknown(std_DIRstd_Wrms_W)
45	N17017	-	W	-	29260	VBVTBYJA	501	1.1	1.0	0.8	2.5	1	61	14.4	17.3	0.0	0.0	Unknown(std_DIRstd_Wrms_W)
46	N17963	-	W	-	13118	CKHSYBBA	242	1.1	0.9	0.5	2.2	4	59	14.5	17.1	0.0	0.0	Unknown(std_DIRstd_Wrms_W)
48	N19986	-	W	-	27637	01CBZMBA	396	0.6	0.9	0.4	2.4	-5	52	11.6	13.8	0.0	0.0	Unknown(std_DIRstd_Wrms_W)
50	N211WN	-	-	R	11131	ZS4UOGBA	3228	0.1	0.8	0.3	1.8	-1	7	1.4	2.6	12.6	25.0	Unknown(bias_RHstd_RH)
51	N213WN	-	-	R	11076	M5OEOGJA	3576	-0.2	0.7	0.3	1.7	-2	8	1.3	2.5	0.2	45.4	Unknown(std_RH)
54	N236WN	-	-	R	11098	VXZUOFRA	3113	-0.1	0.7	0.4	1.7	-1	6	1.3	2.5	-52.1	21.9	Unknown(bias_RHstd_RH)
66	N267WN	-	-	R	11368	US5EOFJA	3244	-0.2	0.8	0.3	1.7	-0	6	1.2	2.4	58.4	89.2	Unknown(bias_RHstd_RH)
78	N27901	-	W	-	11326	1NISBMJA	389	1.5	1.0	1.0	3.1	6	52	11.1	13.3	0.0	0.0	Unknown(std_DIRstd_Wrms_W)
80	N27964	-	W	-	13170	3N5BFFBA	382	1.1	1.0	0.8	2.4	-6	64	13.1	16.0	0.0	0.0	Unknown(std_DIRstd_Wrms_W)
84	N281WN	-	-	R	11419	5EVEOGBA	3039	0.0	0.7	0.2	1.6	-0	6	1.2	2.2	57.2	85.6	Unknown(bias_RHstd_RH)
90	N28912	-	W	-	11984	4B1SV4JA	564	0.2	0.8	1.2	2.3	10	58	14.1	16.5	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
91	N28987	-	W	-	27599	MWFDFYRA	542	0.0	1.1	0.6	2.3	4	68	11.5	14.4	0.0	0.0	Unknown(std_DIRstd_Wrms_W)
96	N29907	-	W	-	11481	GYOTA4ZA	484	0.3	0.8	0.6	2.5	10	52	12.6	14.7	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
100	N30913	-	W	-	12237	XNJCPKZA	481	0.2	0.8	0.7	2.5	8	47	14.8	16.7	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
109	N394UP	T	-	-	26003	JEWWUUJA	645	3.4	1.0	-0.4	2.2	2	10	1.7	3.3	0.0	0.0	Unknown(bias_T)
118	N410UP	-	-	R	701	PPJGU1JA	2154	1.3	0.9	0.5	2.3	-1	7	1.6	3.1	52.1	91.0	Unknown(bias_RHstd_RH)
123	N438WN	-	-	R	11165	DVPUOFZA	2866	-0.0	0.8	0.2	1.6	-0	7	1.3	2.5	-11.0	65.6	Unknown(bias_RHstd_RH)
124	N442WN	-	-	R	11179	ZGUUOGRA	3035	-0.2	0.8	0.4	1.9	-1	7	1.4	2.7	59.1	90.3	Unknown(bias_RHstd_RH)
128	N45905	-	W	-	11430	PIKRV4RA	420	0.8	0.9	0.8	2.2	17	53	19.7	22.4	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
129	N459WN	-	-	R	10804	CGCEOHBA	3247	-0.0	0.7	0.2	1.6	-0	7	1.2	2.3	42.7	75.0	Unknown(bias_RHstd_RH)
135	N6715C	T	-	-	2878	550IZAZA	239	2.3	0.9	0.8	2.8	-1	10	1.8	3.9	0.0	0.0	Unknown(bias_T)
136	N684UA	T	-	-	24706	2G1IR4ZA	630	-5.2	6.0	0.3	3.7	-2	8	2.4	4.8	0.0	0.0	Unknown(bias_Tstd_T)
149	N801AC	-	W	-	12328	VMUIZ4BA	416	1.3	0.8	0.3	2.4	11	45	16.5	18.3	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
150	N802AN	-	W	-	12501	EPSEILRA	214	0.9	0.8	0.7	2.7	13	45	10.5	12.2	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
152	N804AN	-	W	-	12482	0OEUILJA	436	0.7	0.8	0.6	2.5	11	45	11.9	13.7	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
153	N805AN	-	W	-	12487	YX5EILZA	405	0.8	0.9	1.0	2.2	18	60	16.0	18.9	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
154	N806AA	-	W	-	12575	WITICOZA	289	0.9	0.8	0.9	2.5	17	43	15.2	17.0	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
156	N806NW	T	-	-	10675	AFIHLIJA	360	-2.6	4.3	0.9	2.6	-0	5	2.1	3.6	0.0	0.0	Unknown(bias_Tstd_T)
163	N814AA	-	W	-	13179	LNWICORA	488	0.8	0.8	0.9	2.5	11	52	12.5	14.9	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
164	N815AA	-	W	-	13251	J4RYCOJA	545	-0.2	0.9	0.6	2.2	12	46	15.1	16.9	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
165	N817AN	-	W	-	13837	KCWEIERA	409	1.0	0.7	0.6	2.6	14	45	14.0	15.9	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
170	N823AN	-	W	-	13667	BOZEILJA	399	-0.2	0.8	0.9	2.3	13	46	17.7	19.7	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
171	N824AN	-	W	-	13693	12KEILJA	403	0.3	1.0	0.7	2.4	-1	40	11.5	12.9	0.0	0.0	Unknown(std_DIRstd_Wrms_W)
176	N8310C	-	-	R	12692	SQXIOYZA	2706	-0.1	0.6	0.3	1.7	-1	6	1.3	2.5	23.5	90.8	Unknown(bias_RHstd_RH)
178	N832AA	-	W	-	18533	1AQICMZA	338	1.1	0.9	0.9	2.5	13	41	13.4	15.1	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
188	N870AX	-	W	-	26291	JTFX3UJA	236	0.9	0.8	0.8	2.4	4	28	9.3	10.4	0.0	0.0	Unknown(std_Wrms_W)
191	N873BB	-	W	-	27881	1FZYW3BA	248	0.1	0.9	0.8	2.2	4	40	9.5	10.8	0.0	0.0	Unknown(std_DIRstd_Wrms_W)
192	N874AN	-	W	-	29211	BTXEILZA	335	1.4	0.7	0.8	2.7	8	31	9.8	11.1	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
193	N8755L	T	-	-	28364	BNJLYXJA	2794	1.3	3.1	0.2	1.9	-1	6	1.4	2.7	0.0	0.0	Unknown(std_T)
200	N881BK	-	W	-	29385	JJ3LILRA	479	1.0	0.9	0.5	2.4	10	54	14.1	16.2	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
201	N882BL	-	W	-	30541	CNZ13PZA	514	0.8	0.9	0.8	2.5	16	44	13.0	14.8	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
202	N8838Q	T	-	-	29942	PAKWX3RA	2987	-3.1	0.9	0.3	2.1	-1	7	1.5	3.1	0.0	0.0	Unknown(bias_T)
204	N884AA	-	W	-	29680	2IZYCORA	248	0.6	0.8	0.4	2.5	21	68	22.8	26.8	0.0	0.0	Unknown(bias_DIRstd_DIRstd_Wrms_W)
206	N8863Q	T	-	-	30549	0XKWXBZA	2333	0.3	2.3	0.3	1.9	-0	7	1.5	2.9	0.0	0.0	Unknown(std_T)
241	N944WN	-	-	R	11935	NFFUOGZA	2948	-0.2	0.7	0.2	1.6	-1	6	1.2	2.3	-24.2	14.9	Unknown(bias_RH)
243	N945WN	-	-	R	10980	XU4UOFBA	2798	0.1	0.7	0.2	1.6	-0	7	1.2	2.3	-25.5	14.5	Unknown(bias_RH)

check if any tailID or MDCRS is in the jdiag stationIdentification fields

mask = dflist["tailID"].isin(df["aircraftFlightNumber"])
print(len(dflist[mask]))
mask = dflist["MDCRS"].isin(df["aircraftFlightNumber"])
print(len(dflist[mask]))

0
0

Plot hisgrams

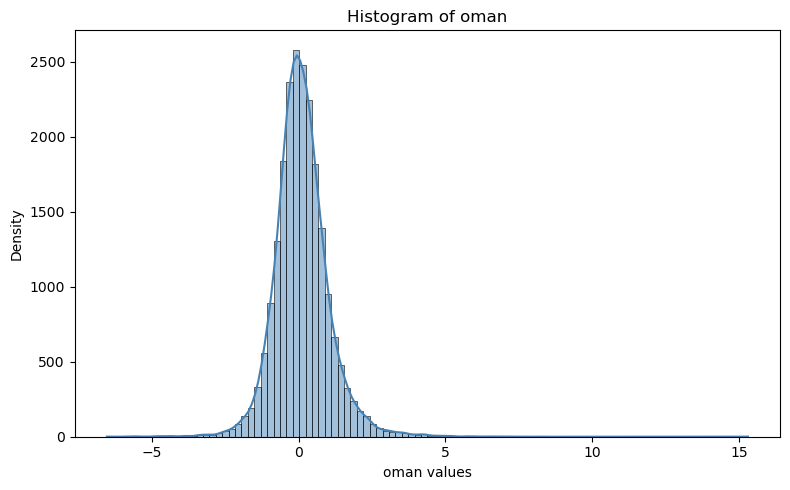

example 1

plt.figure(figsize=(8, 5))
#sns.histplot(df["oman"], bins=50, kde=True, color="steelblue")
sns.histplot(t133.t.oman, bins=100, kde=True, color="steelblue")
plt.title("Histogram of oman")
plt.xlabel("oman values")
plt.ylabel("Density")
plt.tight_layout()
plt.show()

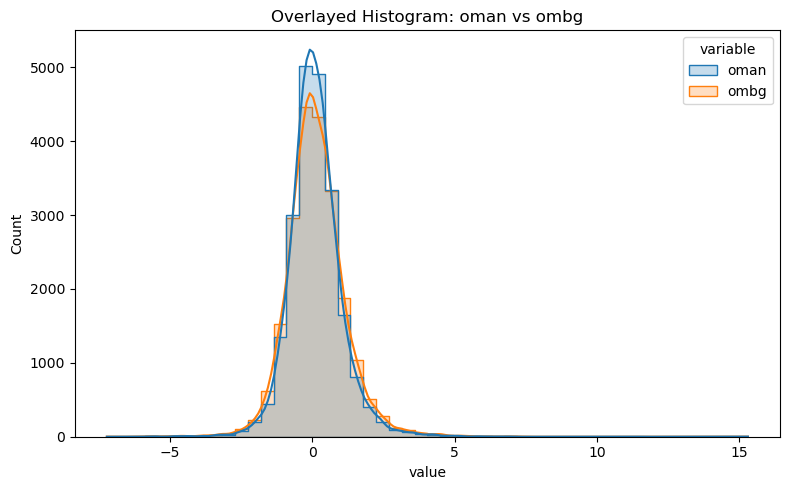

example 2

df_long = df[["oman", "ombg"]].melt(var_name="variable", value_name="value")

plt.figure(figsize=(8, 5))
sns.histplot(data=df_long, x="value", hue="variable", bins=50, kde=True, element="step", stat="count")
plt.title("Overlayed Histogram: oman vs ombg")
plt.tight_layout()
plt.show()

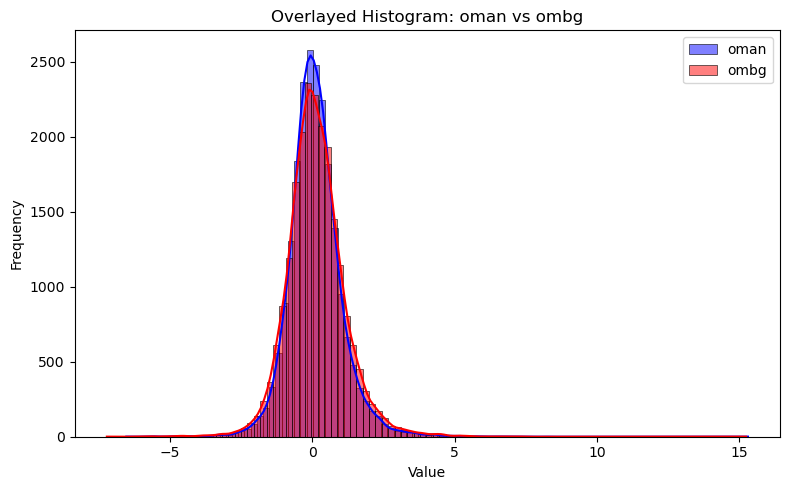

example 3

plt.figure(figsize=(8, 5))
sns.histplot(df["oman"], bins=100, kde=True, color="blue", label="oman", multiple="layer")
sns.histplot(df["ombg"], bins=100, kde=True, color="red", label="ombg", multiple="layer")

plt.title("Overlayed Histogram: oman vs ombg")
plt.xlabel("Value")
plt.ylabel("Frequency")
plt.legend()
plt.tight_layout()
plt.show()

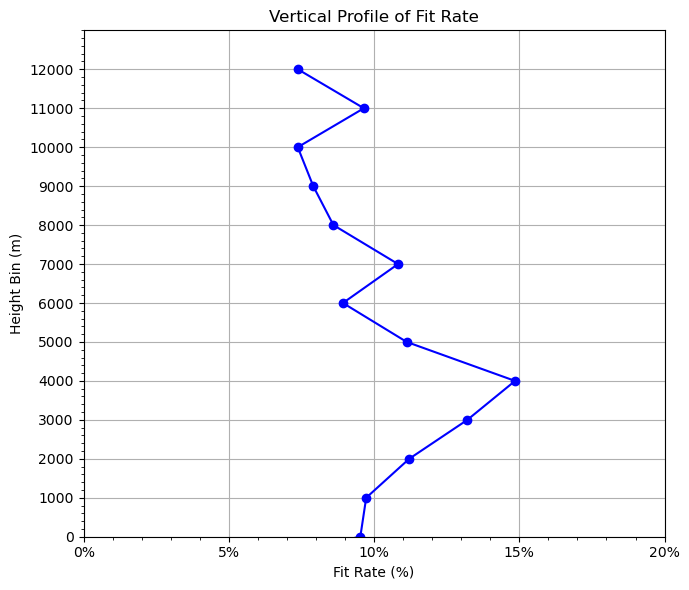

plot fitting rate

The rate fitting to observtions is an important metric to evaluate data assimilation performance.
We don’t want a small fitting rate, which means very little observation impacts on the model forecast.
We don’t want a large fitting rate either, which means we fit too close to the obervations and the model forecast will crash. Ususally, a fitting rate of 20%~30% is expected.

# Filter valid data (both 'oman' and 'ombg' are not NaN)
valid_df = df[df["oman"].notna() & df["ombg"].notna()].copy()
valid_df = valid_df.dropna(subset=["height"])  # removes any rows in valid_df where height is missing (NaN)
# print(valid_df[valid_df["height"] < 0]["height"])   # negative height

dz = 1000
grouped = fit_rate(t133.t, dz=dz)

# 5. Plot vertical profile of fit_rate vs height
plt.figure(figsize=(7, 6))
plt.plot(grouped["fit_rate"], grouped["height_bin"], marker="o", color="blue")
# plt.axvline(x=0, color="gray", linestyle="--")  # ax vertical line

plt.xlabel("Fit Rate (%)")  # label change
plt.gca().xaxis.set_major_formatter(plt.FuncFormatter(lambda x, _: f'{x*100:.0f}%'))  # format as %
plt.ylabel("Height Bin (m)")
plt.title("Vertical Profile of Fit Rate")

# Fine-tune ticks
plt.xticks(np.arange(0, 0.25, 0.05))  #, fontsize=12)
plt.yticks(np.arange(0, 13000, dz))  #, , fontsize=12)
# Add minor ticks
from matplotlib.ticker import AutoMinorLocator
plt.gca().xaxis.set_minor_locator(AutoMinorLocator())
plt.gca().yaxis.set_minor_locator(AutoMinorLocator())
# plt.grid(which='both', linestyle='--', linewidth=0.5)
plt.grid(True)

plt.ylim(0, 13000)  # set y-axis from 0 (bottom) to 13,000 (top)
plt.tight_layout()
plt.show()

OMA: bias=0.1127 rms=0.9431
OMB: bias=0.1390 rms=1.0462
Overall fit_rate: 9.8576%
0, -1000, 1.7179, 1.7704, 2.9680%
1, 0, 1.3425, 1.4839, 9.5256%
2, 1000, 0.8929, 0.9891, 9.7274%
3, 2000, 0.9511, 1.0712, 11.2078%
4, 3000, 0.8140, 0.9379, 13.2102%
5, 4000, 0.7072, 0.8306, 14.8529%
6, 5000, 0.7251, 0.8159, 11.1235%
7, 6000, 0.7037, 0.7727, 8.9264%
8, 7000, 0.7456, 0.8361, 10.8245%
9, 8000, 0.7729, 0.8456, 8.5992%
10, 9000, 0.7673, 0.8331, 7.9049%
11, 10000, 0.8056, 0.8697, 7.3711%
12, 11000, 1.1992, 1.3272, 9.6471%
13, 12000, 1.3538, 1.4615, 7.3744%

print(grouped["height_bin"])

0     -1000
1         0
2      1000
3      2000
4      3000
5      4000
6      5000
7      6000
8      7000
9      8000
10     9000
11    10000
12    11000
13    12000
Name: height_bin, dtype: int32

plot satellite observations

load satellite data using obsSpace

%%time

cris_file = f"{pyDAmonitor_ROOT}/data/mpasjedi/jdiag_cris-fsr_n20.nc"
obsCris = obsSpace(cris_file)

CPU times: user 3.19 s, sys: 7.45 s, total: 10.6 s
Wall time: 36.8 s

query_data(obsCris.bt, meta_exclude="sensorCentralWavenumber_") # removing the meta_exclude paramter will output all sensorCentralWavenumber_* information

DerivedObsError, DerivedObsValue, CloudDetectMinResidualIR, NearSSTRetCheckIR, ScanEdgeRemoval, GrossCheck, Thinning, UseflagCheck, EffectiveError0, EffectiveError1, EffectiveError2, EffectiveQC0, EffectiveQC1, EffectiveQC2, sensorZenithAngle, satelliteIdentifier, sensorScanPosition, instrumentIdentifier, longitude, latitude, sensorViewAngle, scanLineNumber, solarZenithAngle, sensorChannelNumber, sensorAzimuthAngle, fieldOfViewNumber, dateTime, solarAzimuthAngle, ObsBias0, ObsBias1, ObsBias2, constantPredictor, emissivityJacobianPredictor, hofx0, hofx1, hofx2, innov1, lapseRatePredictor, lapseRate_order_2Predictor, oman, ombg, sensorScanAnglePredictor, sensorScanAngle_order_2Predictor, sensorScanAngle_order_3Predictor, sensorScanAngle_order_4Predictor, Channel, Location

print(obsCris.bt.hofx0)

[[-- -- -- ... -- -- --]
 [222.63551330566406 224.9462127685547 222.70394897460938 ...
  291.0711669921875 291.02618408203125 290.8084411621094]
 [-- -- -- ... -- -- --]
 ...
 [-- -- -- ... -- -- --]
 [-- -- -- ... -- -- --]
 [-- -- -- ... -- -- --]]

assemble target obs array

ncount=0
idx = []
idx2 = []
ch=61
for n in np.arange(len(obsCris.bt.ombg[:,ch])):
    #if obsCris.bt.CloudDetectMinResidualIR[n,ch] == 1:
     if obsCris.bt.ombg[n,ch] > -200 and obsCris.bt.ombg[n,ch] < 200:
       idx.append(n)
       ncount = ncount + 1

lat=obsCris.bt.latitude[idx]
lon=obsCris.bt.longitude[idx]
obarray=obsCris.bt.DerivedObsValue[idx,ch]
print(lon,lat,obarray)
print(ncount)

[-127.40092 -129.51625 -131.27661 ... -132.82477 -135.50513 -137.78625] [24.14625 24.23062 24.33297 ... 47.29415 47.29884 47.30563] [233.91612 235.93317 237.10016 ... 232.89937 233.92868 234.85745]
9521

prepare coloar map

datmi = np.nanmin(obarray)  # Min of the data
datma = np.nanmax(obarray)  # Max of the data

if np.nanmin(obarray) < 0:
  cmax = datma
  cmin = datmi
  cmax=310
  cmin=200
  #cmax=1.0
  #cmin=-1.0
  cmap = 'RdBu'
else:
  #cmax = omean+stdev
  #cmin = np.maximum(omean-stdev, 0.0)
  cma = datma
  cmin = datmi
  cmax=310
  cmin=200
  #cmax=1.0
  #cmin=-1.0
  cmap = 'RdBu'
  cmap = 'viridis'
  cmap = 'jet'


cmin = 200.
cmax = 310.
conus_12km = [-150, -50, 15, 55]

color_map = plt.cm.get_cmap(cmap)
reversed_color_map = color_map.reversed()
units = 'K'
#units = '%'
fig = plt.figure(figsize=(10, 5))

/tmp/ipykernel_4082298/1360930195.py:30: MatplotlibDeprecationWarning: The get_cmap function was deprecated in Matplotlib 3.7 and will be removed in 3.11. Use ``matplotlib.colormaps[name]`` or ``matplotlib.colormaps.get_cmap()`` or ``pyplot.get_cmap()`` instead.
  color_map = plt.cm.get_cmap(cmap)

<Figure size 1000x500 with 0 Axes>

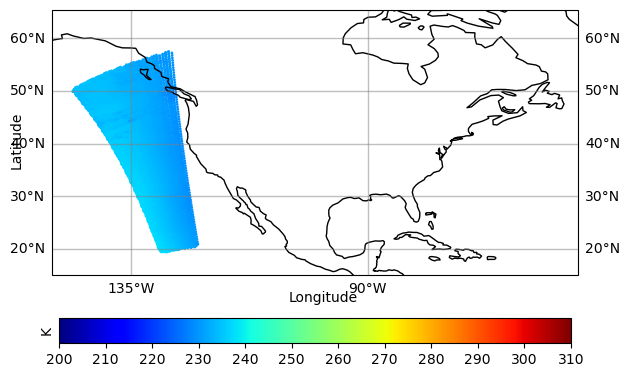

make the plot

import cartopy.crs as ccrs
import matplotlib.ticker as mticker
import matplotlib.colors as colors

ax = plt.axes(projection=ccrs.PlateCarree(central_longitude=0))

# Plot grid lines
# ----------------
gl = ax.gridlines(crs=ccrs.PlateCarree(central_longitude=0), draw_labels=True,
                  linewidth=1, color='gray', alpha=0.5, linestyle='-')
gl.top_labels = False
gl.xlabel_style = {'size': 10, 'color': 'black'}
gl.ylabel_style = {'size': 10, 'color': 'black'}
gl.xlocator = mticker.FixedLocator(
   [-180, -135, -90, -45, 0, 45, 90, 135, 179.9])
ax.set_ylabel("Latitude",  fontsize=7)
ax.set_xlabel("Longitude", fontsize=7)

# Get scatter data
# ------------------
sc = ax.scatter(lon, lat,
                c=obarray, s=4, linewidth=0,
                transform=ccrs.PlateCarree(), cmap=cmap, vmin=cmin, vmax = cmax, norm=None, antialiased=True)

# Plot colorbar
# --------------
cbar = plt.colorbar(sc, ax=ax, orientation="horizontal", pad=.1, fraction=0.06,ticks=[200, 210, 220, 230, 240, 250, 260, 270, 280, 290, 300, 310])
#cbar = plt.colorbar(sc, ax=ax, orientation="horizontal", pad=.1, fraction=0.06,ticks=[-3, -2.5, -2, -1.5, -1, -0.5, 0, 0.5, 1.0, 1.5, 2.0, 2.5, 3 ])
#cbar = plt.colorbar(sc, ax=ax, orientation="horizontal", pad=.1, fraction=0.06,ticks=[0, 10, 20, 20, 40, 50, 60, 70, 80, 90, 100])
cbar.ax.set_ylabel(units, fontsize=10)
# Plot globally
# --------------
#ax.set_global()
#ax.set_extent(conus)
ax.set_extent(conus_12km)

# Draw coastlines
# ----------------
ax.coastlines()
ax.text(0.45, -0.1, 'Longitude', transform=ax.transAxes, ha='left')
ax.text(-0.08, 0.4, 'Latitude', transform=ax.transAxes,
        rotation='vertical', va='bottom')

#text = f"Total Count:{datcont:0.0f}, Max/Min/Mean/Std: {datma:0.3f}/{datmi:0.3f}/{omean:0.3f}/{stdev:0.3f} {units}"
#print(text)
#ax.text(0.67, -0.1, text, transform=ax.transAxes, va='bottom', fontsize=6.2)

dpi=100
gl.top_labels = False
plt.tight_layout()

# show plot
# -----------
# pname='test.png'
# plt.savefig(pname, dpi=dpi)

For reference, using netCDF4 to read jdiag files directly

dataset=Dataset(jdiag_file, mode='r')
query_dataset(dataset)

EffectiveError0
    airTemperature
EffectiveError1
    airTemperature
EffectiveError2
    airTemperature
EffectiveQC0
    airTemperature
EffectiveQC1
    airTemperature
EffectiveQC2
    airTemperature
MetaData
    stationIdentification, aircraftFlightPhase, timeOffset, prepbufrDataLvlCat, longitude, stationElevation, latitude, prepbufrReportType, pressure, longitude_latitude_pressure, dateTime, height, dumpReportType, aircraftFlightNumber
ObsBias0
    airTemperature
ObsBias1
    airTemperature
ObsBias2
    airTemperature
ObsError
    airTemperature, relativeHumidity, windEastward, pressure, windNorthward
ObsType
    specificHumidity, windEastward, airTemperature, windNorthward
ObsValue
    dewpointTemperature, specificHumidity, airTemperature, windEastward, windNorthward
QualityMarker
    airTemperature, pressure, windEastward, specificHumidity, height, windNorthward
TempObsErrorData
    airTemperature
hofx0
    airTemperature
hofx1
    airTemperature
hofx2
    airTemperature
innov1
    airTemperature
oman
    airTemperature
ombg
    airTemperature
Location

NOTE:

We can see that jdiag files (or output ioda files) have the group/variable structure.
And we need to use, for example, obs.groups["oman"].variables["airTemperature"][:] to access data.

Wit the obsSpace class, we can access the data very easily and conveniently by using obs.t.oman
